Deploy Application

In the previous section, 2 Deploy on Local, we manually deployed the following:

  • Database Server
  • Web Server
  • End User Application

As mentioned before, there were several limitations in this approach. Now, we’ll deploy the infrastructure on the cloud using Docker, eliminating the need to download and install everything manually. If you’re familiar with Docker basics (especially networking), this part will not be too challenging.

In the earlier 4 Configure RDS step, we already configured the Database Server using Amazon RDS, so we no longer need to worry much about maintenance, access security, or data safety. Now, in this cloud deployment, we’ll focus on deploying the remaining applications using Docker Images.

Next, we’ll deploy using Docker Compose so you can see the difference between deploying on Local, deploying with Docker Images on the Cloud, and deploying with Docker Compose on the Cloud.

In the 2 Deploy on Local section, you can consider this as deploying in a development environment, but now we’ll deploy in a production or testing environment.

Deploy the Web Server

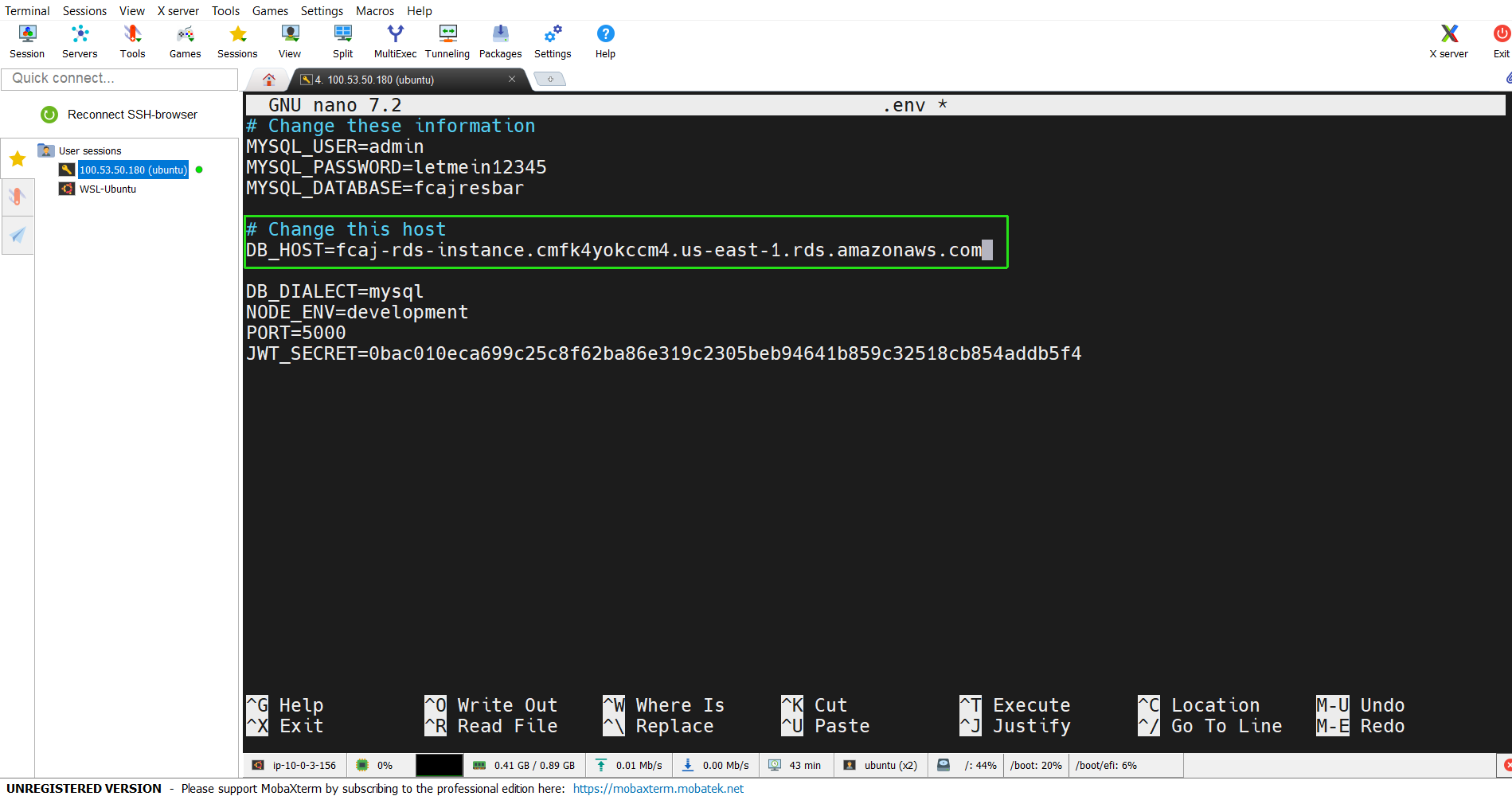

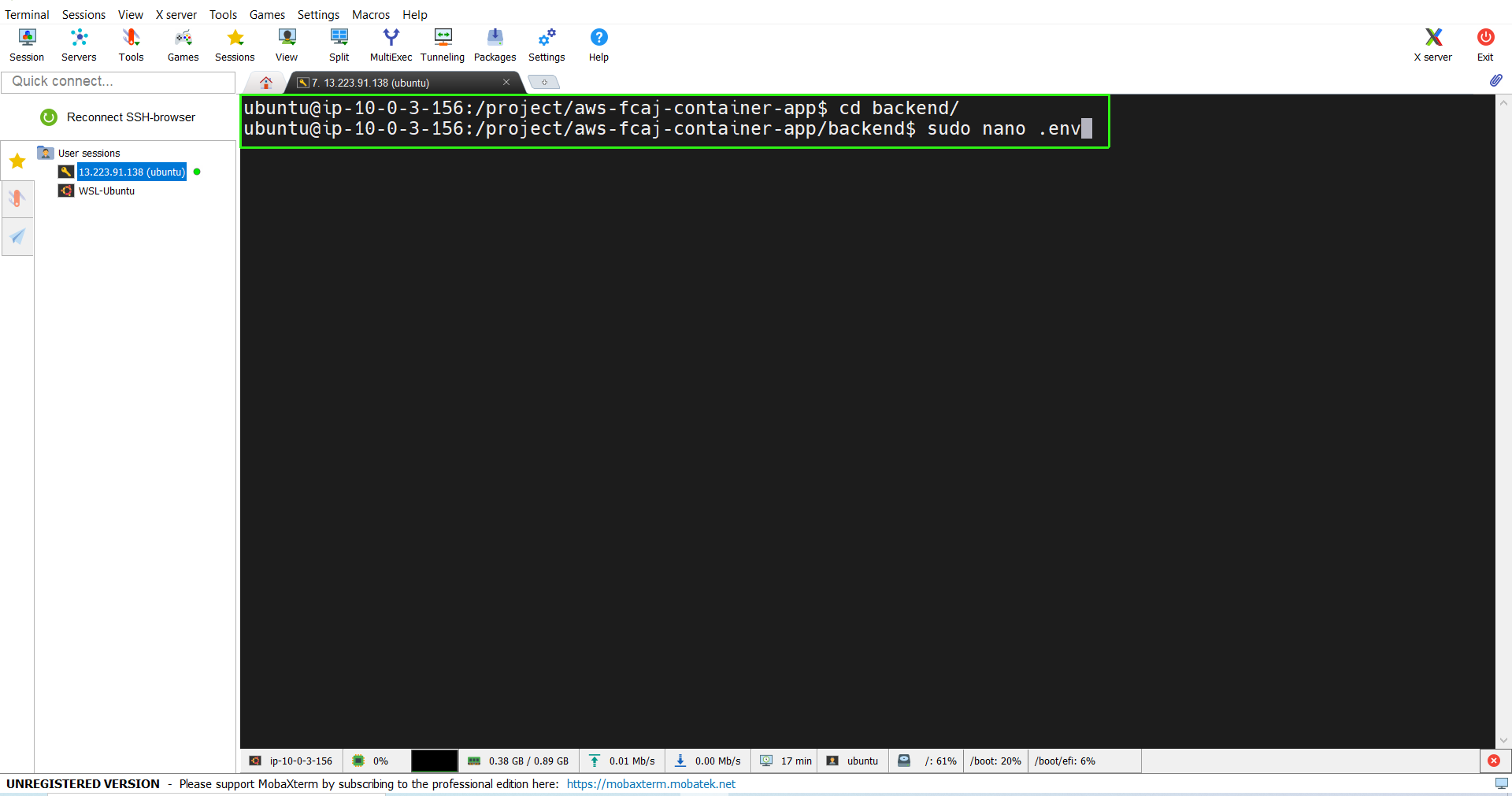

  1. Go to the source code directory we cloned earlier, aws-fcaj-container-app. Inside the backend folder, modify the contents of the .env file, specifically changing the DB_HOST variable: sudo nano .env



  1. Use cd backend to navigate to the backend folder. Now the web server is ready to run.

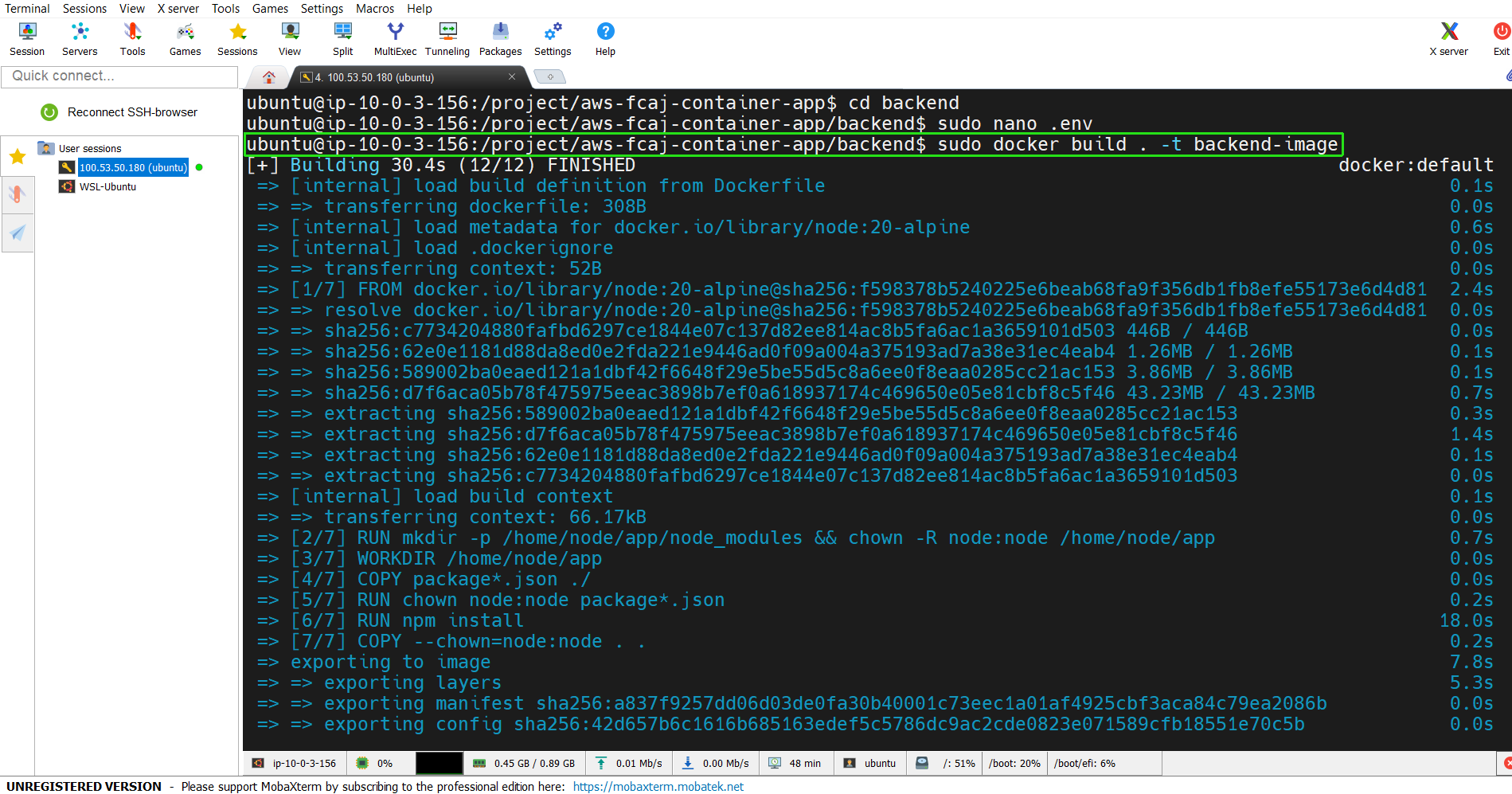

docker build -t aws-fcaj-container-app-backend .


  1. Before starting the web server container, we need to create a network for the containers to communicate with each other:

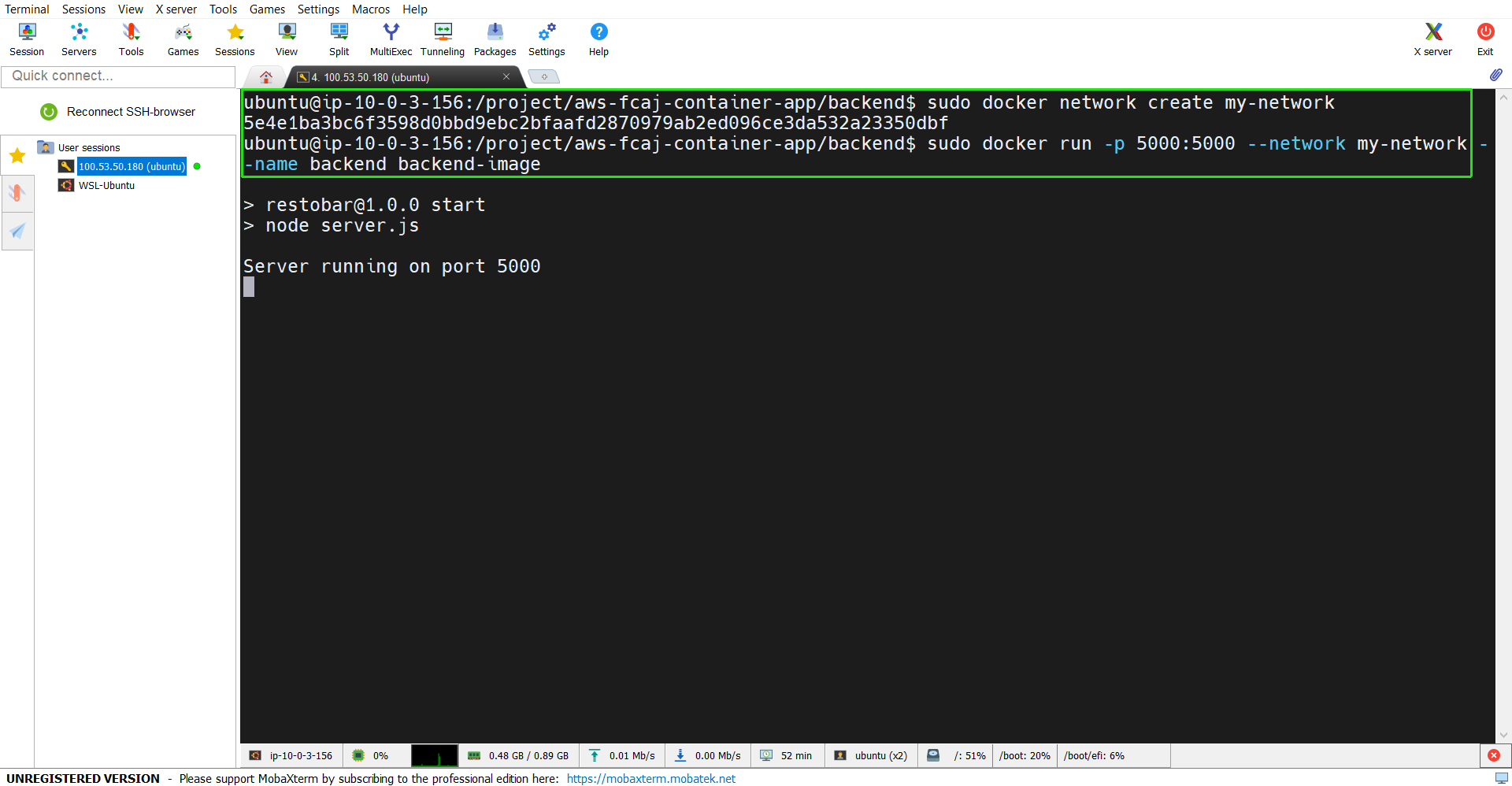

sudo docker network create my-network
  1. Then, run the Docker container using the newly built Docker Image:
sudo docker run -p 5000:5000 --network my-network --name backend aws-fcaj-container-app-backend


Deploy the Application

  1. Now, open a new SSH session to follow the same steps, but this time, we’ll deploy the Application.
  • Use cd frontend to navigate to the frontend folder
  • Run the command below:

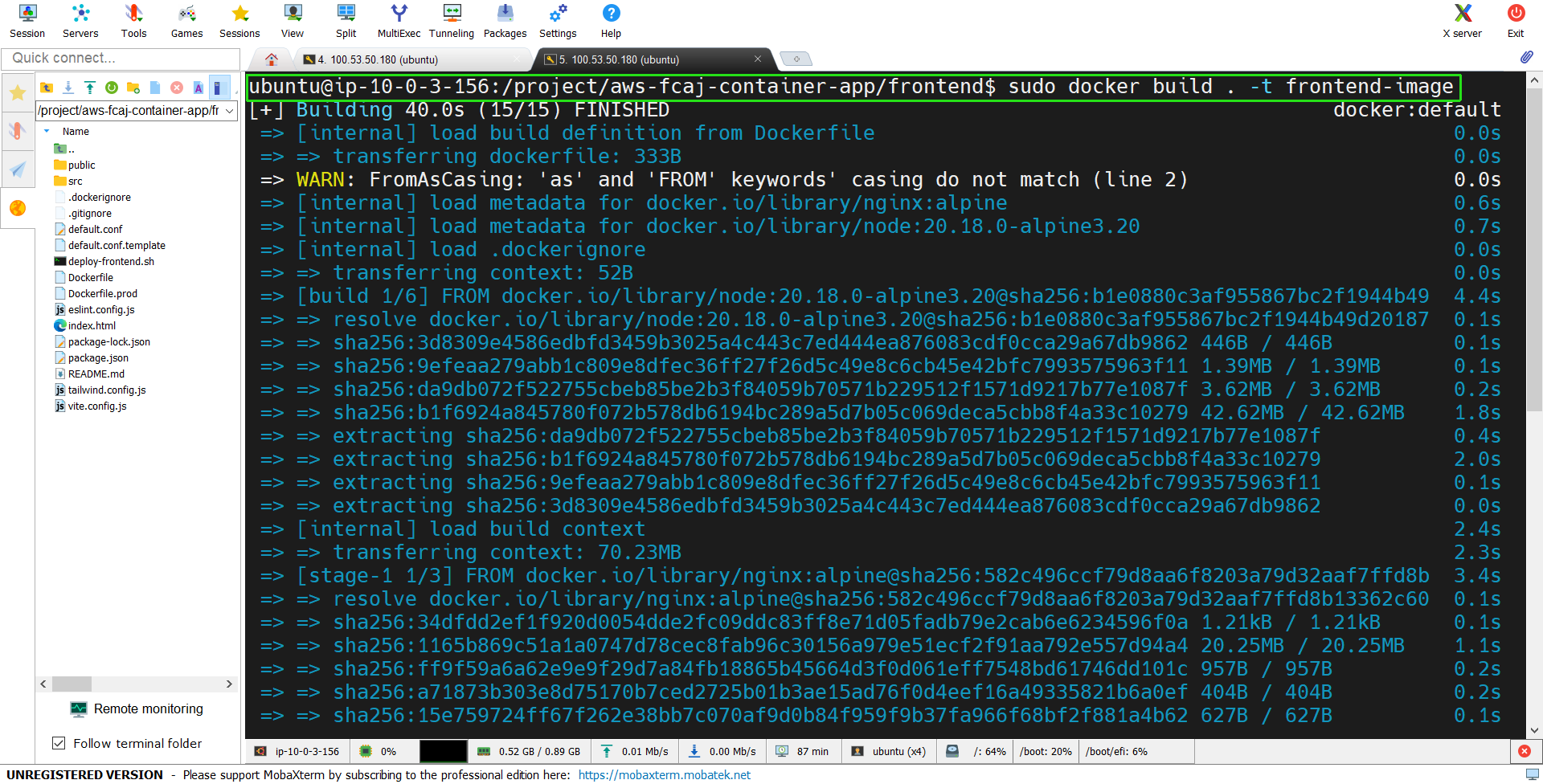

docker build -t aws-fcaj-container-app-frontend .


  1. Then, run the Docker container using the newly created Docker Image:

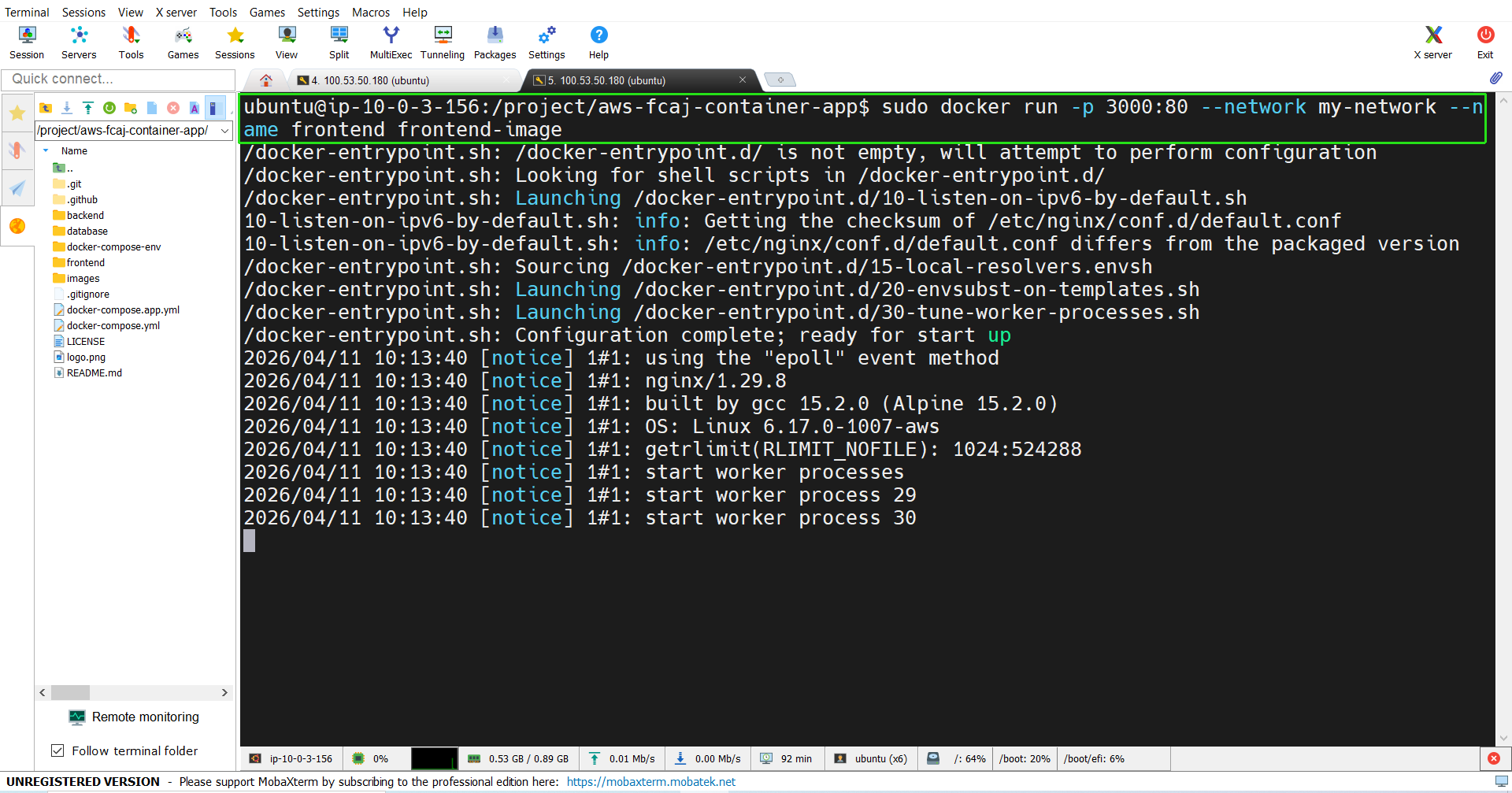

sudo docker run -p 3000:80 --network my-network --name frontend aws-fcaj-container-app-frontend
